Product Details
＋The MAX30102 is a sensor module designed to measure heart rate and blood oxygen saturation (SpO2) levels. It combines optical sensors with advanced algorithms to provide accurate and real-time monitoring of cardiovascular and respiratory health metrics. The module is compact and often used in wearable devices, fitness trackers, and health monitoring systems.
Heart Rate Measurement: Provides real-time heart rate monitoring with high accuracy.
Pulse Oximeter Measurement: Measures blood oxygen saturation (SpO2) levels.
I2C Interface: Communicates with microcontrollers and processors via I2C for easy integration.
Low Power Consumption: Designed for battery-operated devices with efficient power use.
Compact Design: Small and lightweight, suitable for wearable and portable applications.
Medical Monitoring Systems: Helps in continuous monitoring of heart rate and oxygen saturation for patients.
Fitness Tracking: Assists in tracking cardiovascular performance and overall fitness levels.
Configuration: Requires proper setup and calibration through software to ensure accurate measurements.
Data Processing: Raw data from the sensor needs to be processed to extract meaningful heart rate and SpO2 readings.
Features:
Sensor Type: Integrates a photodetector, LED light source (typically red and infrared), and a signal processor for heart rate and SpO2 measurement.Heart Rate Measurement: Provides real-time heart rate monitoring with high accuracy.
Pulse Oximeter Measurement: Measures blood oxygen saturation (SpO2) levels.
I2C Interface: Communicates with microcontrollers and processors via I2C for easy integration.
Low Power Consumption: Designed for battery-operated devices with efficient power use.
Compact Design: Small and lightweight, suitable for wearable and portable applications.
Applications:
Wearable Health Devices: Used in smartwatches, fitness trackers, and other wearable health monitoring devices.Medical Monitoring Systems: Helps in continuous monitoring of heart rate and oxygen saturation for patients.
Fitness Tracking: Assists in tracking cardiovascular performance and overall fitness levels.
Usage:
Connection: Connects to microcontrollers or development boards via the I2C interface.Configuration: Requires proper setup and calibration through software to ensure accurate measurements.
Data Processing: Raw data from the sensor needs to be processed to extract meaningful heart rate and SpO2 readings.
Features
- LED peak wavelength: 660nm/880nm
- LED power supply voltage: 3.3~5V
- Detection signal type: light reflection signal (PPG)
- Output signal interface: I2C interface
- Communication interface voltage: 1.8~3.3V~5V (optional)
- Board reserved assembly hole size: 0.5 x 8.5mm
Specifactions
- Model: MAX30102
- Product Type: Oximeter Sensor Module
- Color: Black
- Operating Voltage (V): 3.3~5V
- Interface: I2C Interface
- Detection signal type: light reflection signal (PPG)
- LED peak wavelength: 660nm/880nm
- Dimensional Accuracy (mm): 0.5 x 8.5mm
Applications
- Medical Monitoring Devices
- Fitness Assistant Devices
- Wearable Devices
Package Includes

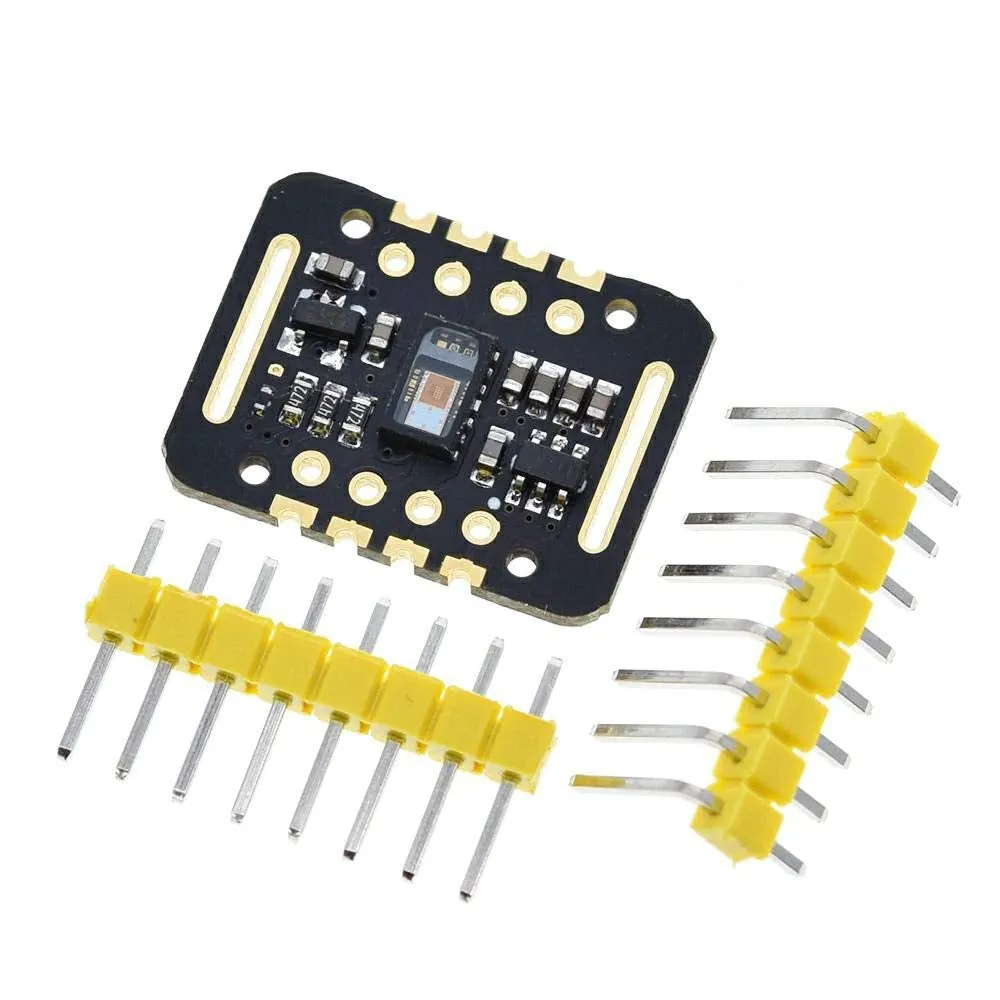

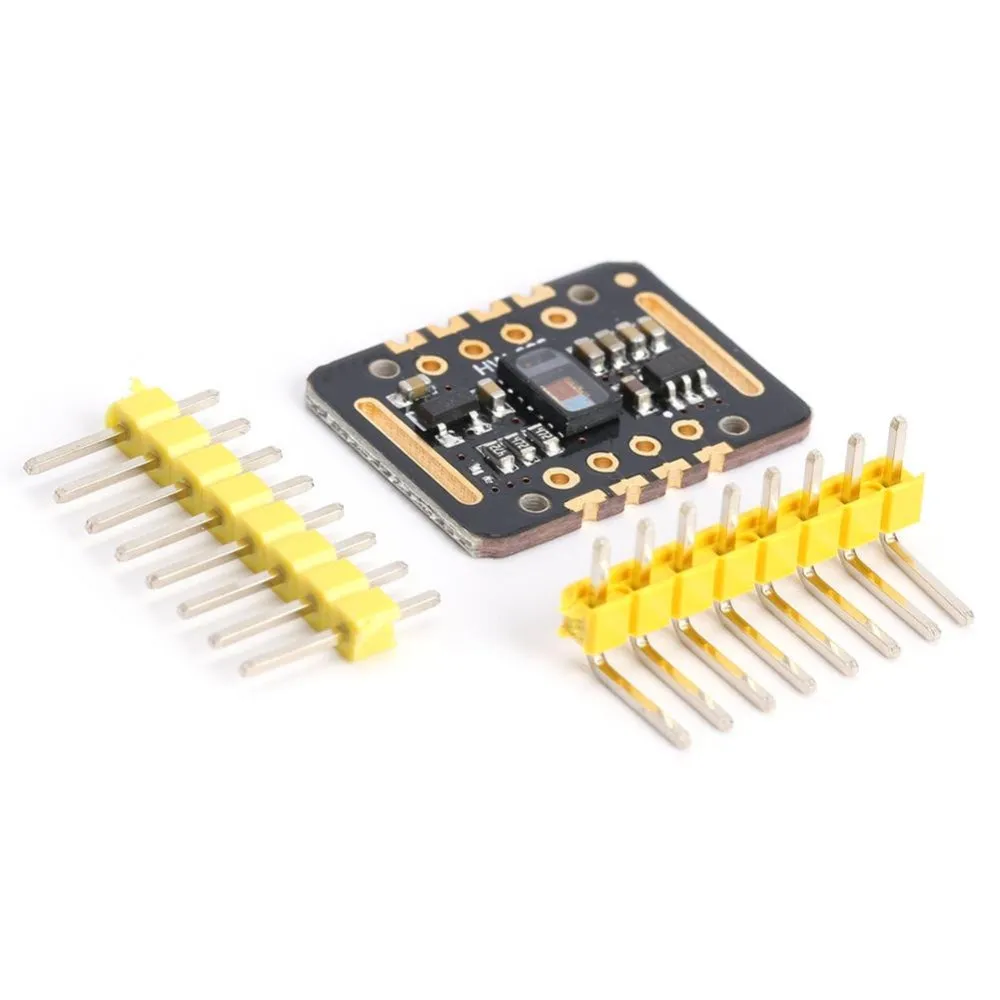

- 1 x MAX30102 Heart Rate and Pulse Oximeter Sensor Module (Black)
